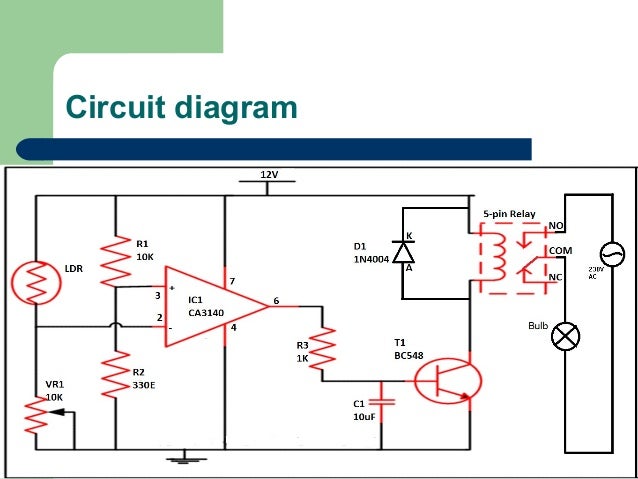

automatic street light controller using relays and ldr. description the circuit diagram present here is that of a street light that automatically switches on when the night falls and turns off when the sun rises in fact you can this circuit for implementing any type of automatic night light the circuit uses a light dependent resistor ldr to sense the light when there is light the resistance of ldr will be low.
automatic street light controller circuit using relays and ldr. 04 11 2012 the heart of this circuit is a ldr light depended resistor which is connected as a potential divider with a 56k resistor the drop across ldr is used for switching the transistor solar led street lighting systems are the advanced versions of this ordinary automatic street light controller solar table lamp circuit for your home. how to make a circuit of automatic street light control. 19 04 2016 share on tumblr construction and working simple and easy to construct automatic street light circuit is given here this circuit is constructed by common 5mm ldr light dependent resistor and transistor bc 107 switching transistor sl 100 this switching transistor collector terminal is connected with 9 volt relay terminal a 230 volt lamp is connected with relays common terminal and. images of automatic street light circuit diagram using ldr and r. circuit diagram 1 automatic street light control system sensor using ldr transistor bc 547 very simple we have tried this one in this tutorial but you can also try the second one mentioned below. automatic street light circuit theorycircuit. automatic night lamp using ldr by arun bhaskar electronics hobby circuits projects ldr 18 comments 12v relay circuit diagram the main part of this circuit is the light dependent resistor ldr it is a sensor which is a particular kind of resistor whose resistance decreases when exposed to light likewise it offers high resistance. automatic street light control system using ldr.
automatic night lamp using ldr electrosome. automatic room lights using arduino and pir sensor.
